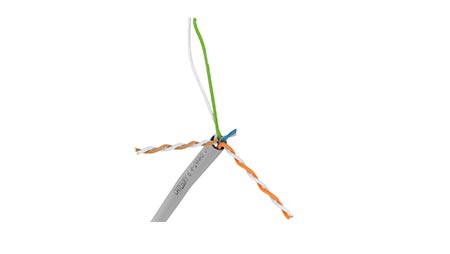

Untwist twisted-pair ethernet cable
Straighten untwisted lan cable
Triggered by foot pedal
Simple operation
Lightweight
JCW-322C
Untwist twisted-pair ethernet cable
Straighten untwisted lan cable
Triggered by foot pedal
Simple operation
Lightweight
Cat5e / Cat6 Cable Straighten Machine
JCW-322C Ethernet Cable Untwist and Straighten Machine
The JCW-322C Is a highly flexible and accurate benchtop untwisting machine for fast and reliable untwisting of Cat5, Cat6, Cat6A networking cables and twisted pairs of wires.
The twister gap can be quickly adjusted, and protective devices prevent operators from being pinched.
Model | JCW-322C RJ45 Cat5E/6 NetWork Cable Untwist and Straighten Machine |
Function | CAT5E, CAT6, Type C, USB 3.1 |
Untwist length | 10 - 40 mm |
Rated power | 40 W |
Air supply | 0.2 - 0.5 MPa |
Power supply | AC 110 - 240 V, 50 / 60 Hz |
Dimensions | L 250 x W 360 x H 200 mm |
Weight | 7.2 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
