JCW-WB10T
Fully-auto soft hose recoiling line
Consists of prefeeder and winding machine
Meter and cut tubing into desired lengths, fully programmable

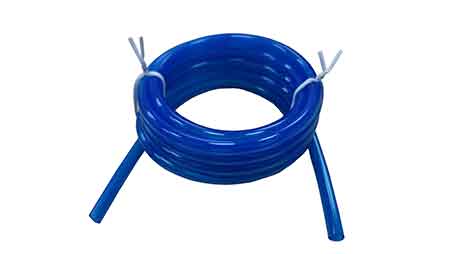

Winding tubing to coil and tying the roll by iron cable tie
PLC control, servo motorize, encoder measure length
Soft Tubing Winding Machine
| Model | JCW-WB10T Soft PE/PVC Tubing Metering Cutting Winding & Tying Machine |
| Tubing diameter | 3 - 6 mm |
| Coil inner diameter | 65 - 70 mm |
| Coil height | Max 50 mm |
| Cutting length | 2 - 3 m |
| Production rate | 500 rolls/h by 2m cutting length |
| Display | 7" Color touchscreen, English / Chinese [ other languages on request ] |
| Rated power | 5000 W |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air pressure | 0.5 - 0.6 MPa |
| Dimensions | L 1600 x W 1000 x H 1600 mm |
| Weight | 800 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
