Model

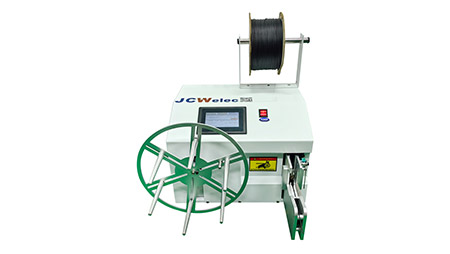

JCW-WB02NP Pipe Winding and Tying Machine

Winding mode

1. Automatic: coiling according to set turn number

2. Manual: stop coiling until release foot pedal

Tie feeding length130 - 240 mm
Tying diameter20 - 60 mm
Wound I.D / length50 - 200 mm
Cycle time0.6 second
Winding speed2 - 10 cycles / s
Display4.3" Color touchscreen, English / Chinese  [ other languages on request ]
Rated power400 W
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions

L 450 x W 390 x H 340 mm

Weight25 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
