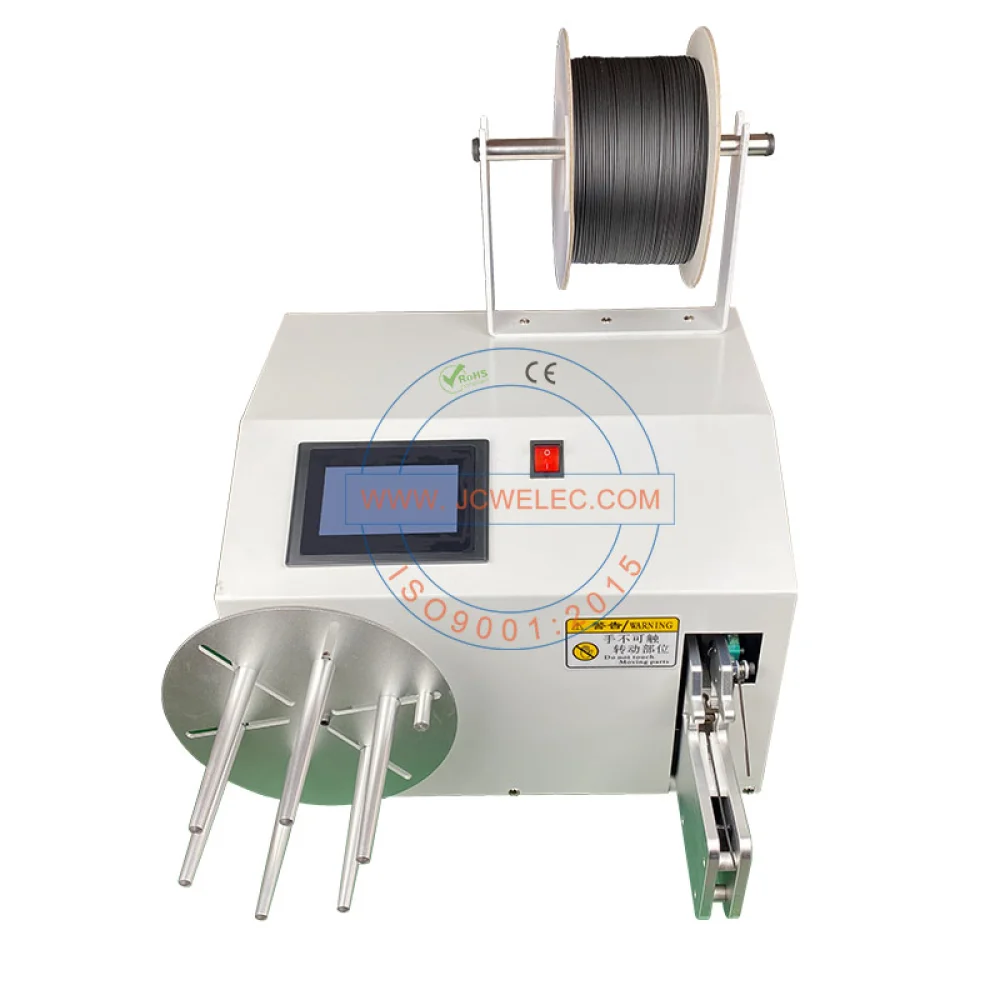

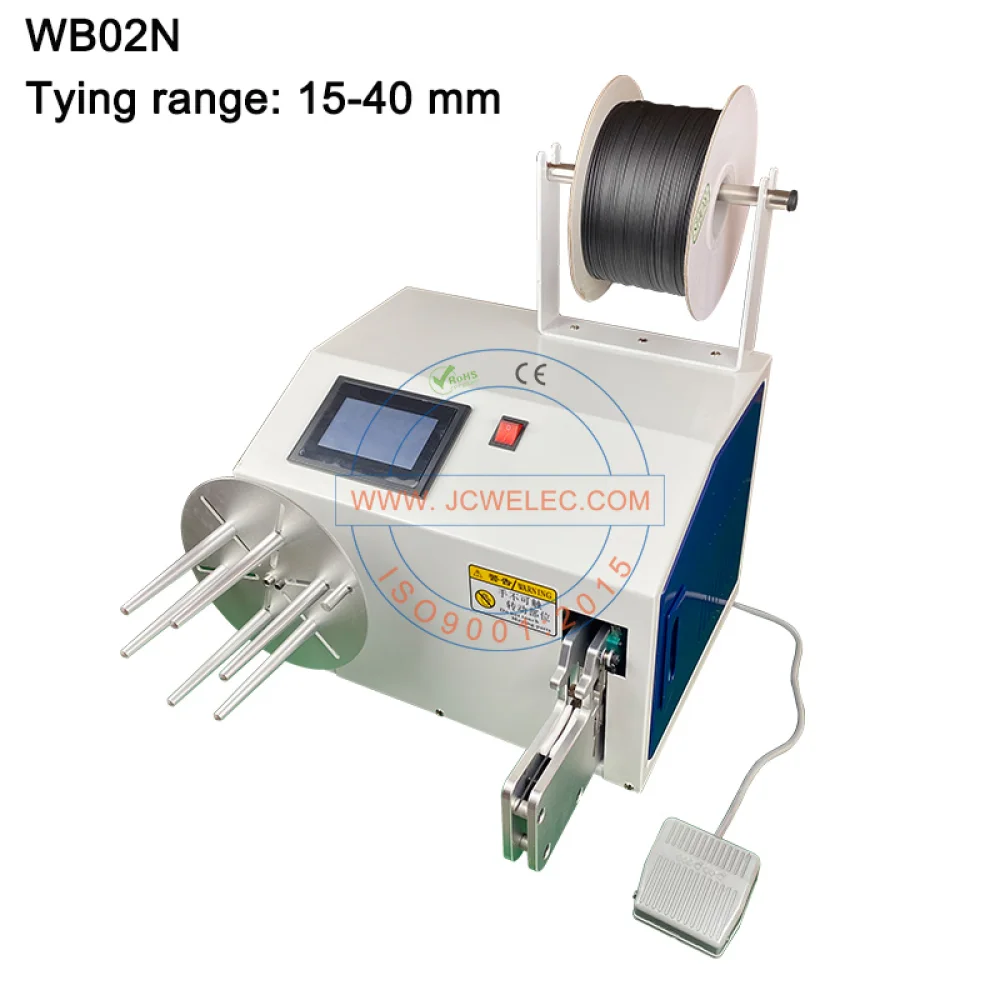

Economic Cable Winding and Tying Machine [ Tying 18-40mm ]

JCW-WB02N

Low budget, high stability, 110 - 220 V

Round coil and oval loop

Short cycle time, high efficiency

PLC touch screen, reliable performance

Fully programmable, simple operation

Increased productivity, reduced cost

Adjustable winding diameter

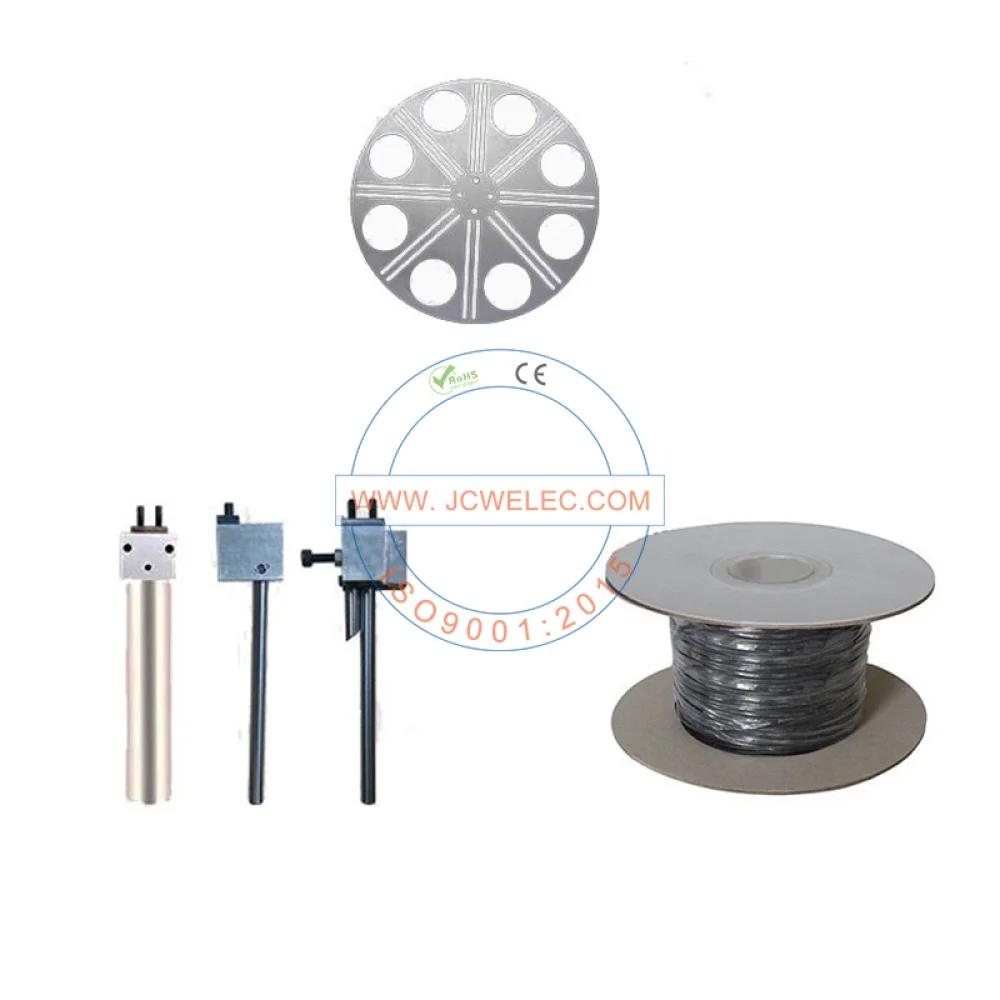

Galvanized iron core cable tie, Kraft paper tie, etc

Inquire Now

Model	JCW-WB02N Economic Cable Winding and Tying Machine
Winding mode	1. Automatic: coiling according to set turn number 2. Manual: stop coiling until release foot pedal
Tie feeding length	120 - 190 mm

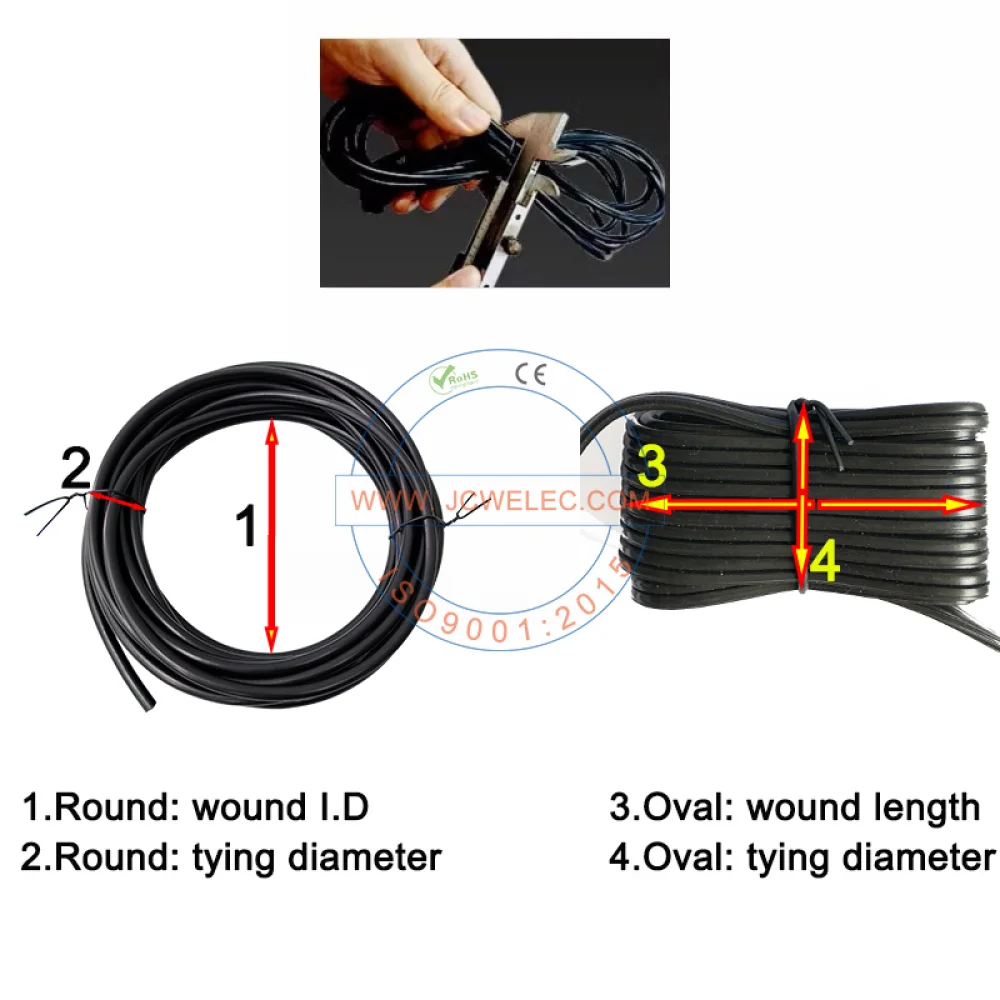

Tying diameter	15 - 40 mm
Wound I.D / length	50 - 200 mm
Cycle time	0.6 second
Winding speed	2 - 10 cycles / s
Display	4.3" Color touchscreen, English / Chinese [ other languages on request ]
Rated power	400 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 450 x W 390 x H 340 mm
Weight	22 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
