High-end Servo Motorized Automatic Wire Stripping to Tinning Machine

JCW-CST22

High-level model, stripping and tinning both single wire and flat sheath cable

Cutter adopts double guide rails and precision grinding screw

Air inhale and jet, collect waste rubber and keep the machine clean

4 cylinders drive the twisting unit to create the perfect twisting effect.

Whole machine adopts anti-corrosion material

Gentle treatment to the wires

Smoke collection unit

Inquire Now

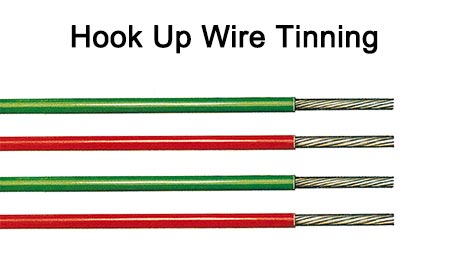

Fully-auto Hook Up Wire Tinning Machine

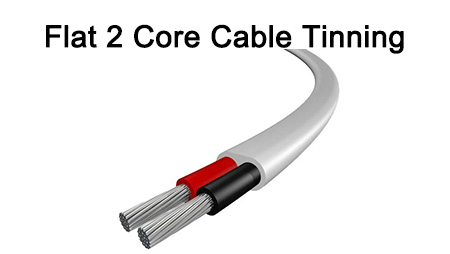

2-Core Flat Cable Tinning

Model	JCW-CST22 Fully Automatic Wire Stripping to Tinning Machine
Function	Single wire, flat sheath cable, single- / dual-end stripping, twisting, tinning
Wire range	AWG 30 - AWG 16
Raw material	PVC, Teflon, Low halogen, etc.
Cutting length ( L )	45 - 1000 mm [ Other lengths on request ]
Cutting length tolerance	0.002 x L
Stripping length	Front side: Max 12 mm [ Customizable ]
Stripping length	Rear side: Max 18 mm [ Customizable ]
Twisting length	2 - 15 mm [ Customizable ]
Tinning length	0.5 - 18 mm
Production rate	9500 pcs/h by 100mm cutting length
Data library	100 programs
Detector	Wire run-out, Wire knot, Air pressure, Heating
Optional peripherals	Wire unwinder, Conveyor belt
Display	7" touch screen, English / Chinese [ other languages on request ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Rated power	2500 W
Air supply	0.5 - 0.8 MPa [ Clean and dry air ]
Weight	450 KG
Dimensions	L 1960 x W 750 x H 1400 mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
