JCW-C02H
Perfect for cutting cable protect sleeve, braided tapes, webbing belts, bag handles etc.
Hot knife / Hot wire design on option
Offers straight cutting and sealing for braided sleeving
Angle cutting is customizable
Excellent price-to-performance ratio

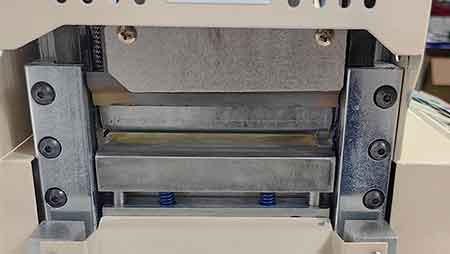

Blade Model Hot Cutter

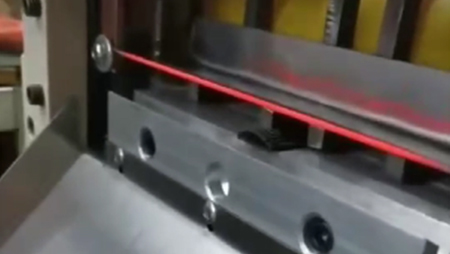

Wire Model Hot Cutter
Automatic cutting machine JCW-C02H is perfect for cutting cable protect sleeves, braided tapes, webbing belts, bag handles etc. (excluding materials containing 100% cotton).
Automatic Hot Knife which is bench mountable and compact. Functions without the need to have an operator nearby.
Built with adjustable temperature to provide optimal performance and automatic job stop when the end of the material is reached.
- With button switching, you can cut strip tapes automatically and neatly.
- Works on large webbing, ribbon, braided sleeving, parachute rope, vertical blinds and a range of tubings.
- Maximum cutting width of 95mm.
- Materials can also be cut parallel to each other.
- Cutting speed of 120 - 140 cuts/min (50mm).
| Model | JCW-C02H Automatic Hot Knife Cutting Machine |
| Function | Cutting speed, tubing guide, multi-piece cutting |
| Raw material | Cable protect sleeve, braided tapes, webbing belts, bag handles |
| Blade width | 100 mm |
| Cutting length ( L ) | 0.1 - 5000 mm [ customizable ] |
| OEM | Yes |
| Power supply | AC 110 - 220V + 10 %, 50/60 Hz |
| Dimensions | L 410 x W 350 x H 300 mm |
| Weight | 23 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
