Model

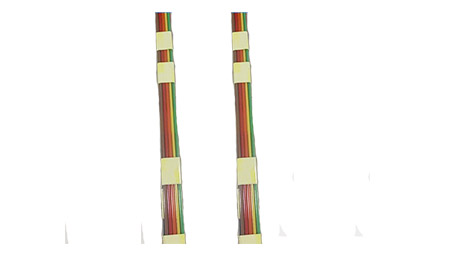

JCW-T01F Ribbon Cable & Wire Harness Spot Taping Machine

FunctionBundling, insulating, and marking
Tape width5 - 15 mm
Cable width1 - 10 mm [ customizable ] [ one machine for one size only ]
Taping accuracy
± 0.5mm
Production rate1200 - 1800 pcs/hr
Display

4.3" color touchscreen, English / Chinese

[ other languages on request ]

Optional devicePaper coiler, location device.
Air supply0.6 MPa ( clean and dry air )
Power supplyAC 110 - 220 V, 50 / 60 Hz
DimensionsL 260 x W 500 x H 500 mm
Weight20 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
