Flat Ribbon Cable & Single Wire Crimping to Tinning Machine

JCW-CST06A

Horizontal transfer unit moves cable, no swing

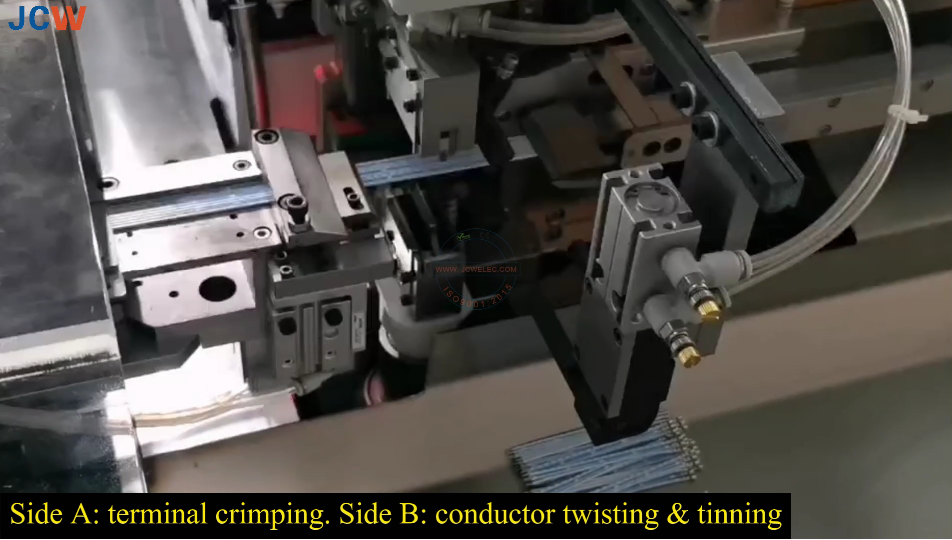

Single-end terminal crimping to tin dipping

Fully digital & programmable, short & long cable in one machine

Cutting length: 8 - 850 mm [ 1200/1500/1800mm on request ]

Both single wire & ribbon cable can be processed

Inquire Now

Ribbon Cable Crimping Tinning

Model	JCW-CST06 Automatic 5 Wires Crimping to Tinning Machine
Cable type	Single wire, flat ribbon cable
Ribbon cable range	2 - 16 P
Single wire range	AWG 28 - 16
Raw material	PVC, Teflon, Low halogen, etc.
Terminal type	PH / XH / EH / SCN / SM / VH, etc
Crimp force	2 tons [ 20 KN ]
Cut length ( L )	Ribbon cable: 40 - 850 mm [ 1200-1500-1800mm on request ] Single wire: 15 - 850 mm [ 1200-1500-1800mm on request ]
Cut length tolerance	0.002 x L
Strip length	Front: 7.5 mm. Rear: 11 mm
Twist length	0.5 - 11 mm
Tinning length	0.5 - 11 mm
Production rate	1000 pcs/h by 850mm cutting length, 10P ribbon cable
Data library	100 programs
Detector	Wire lack, Wire knot, Wire stripping, Terminal crimping, Air pressure
Smoke collect system	Yes
Optional peripherals	CFM, Wire unwinder, Marking system
Display	7" touch screen, English / Chinese [ other languages on request ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Rated power	2500 W
Air supply	0.5 - 0.8 MPa [ Clean and dry air ]
Weight	500KG
Dimensions	L 1750 x W 750 x H 1500mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
