Automatic Connector Housing Insertion Machine

JCW-CM20

Dual-end wire stripping to connector housing insert

Insert wires piece by piece, wire lengths can be different

Pull test after insertion, ensure insert quality

Camera detect system, crimp force monitor

Industrial computer control, extendable capacity

Inquire Now

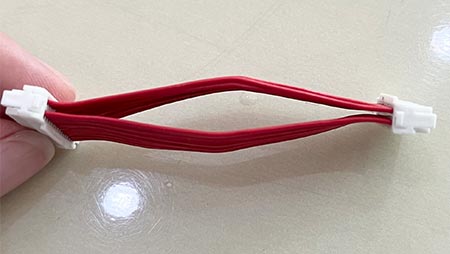

2 Rows Connector Housing Terminate Center

Model	JCW-CM20 Automatic Connector Housing Insertion Machine
Stations	6, any workstation can be closed independently
Control system	Industrial computer, English / Chinese
Wire range	AWG 24 - AWG 18
Cut length ( L )	90 - 900 mm [ other lengths on request ]
Connector to connector	Min 50 mm
Cut length accuracy	± { 0.2% x L + 5 } mm
Strip length	Side A: 0.1 - 6 mm; Side B: 0.1 - 10 mm
Crimping force	2.0 tons
Servo press	Optional
Housing rows	Max 3 rows
Housing pins	Max 20P each row
Housing pitch	1.0 - 4.2 mm
Housing dimensions	MIN:5 x 6 x 3 mm, MAX: 40 x 25 x 25 mm
Wire colors	8 [ Customizable ]
Product rate	2200 - 2400 wires/h
Detection	Wire run-out, terminal run-out, air pressure, CCD
Detection	CCD for wire stripping & terminal crimping. Wire lack / knot. Terminal / housing lack. Crimp force. Terminal pull test after insertion.
Air supply	0.55 - 0.75 MPa [ clean and dry air ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 2400 x W 1500 x H 1850 mm
Weight	800 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
