Versatile Loom Tubing and Cable Cutting Machine

JCW-C16

Versatile cutting machine, fast and straight cutting

Quick changing tube guide, fully programmable, safe operation

Designed for hard hollow tube and round cable

Corrugated tube up to 30mm in O.D.

Cable up to 3 x 6mm²

Inquire Now

Versatile Cutting Machine

JCW-C16 Versatile Tube and Cable Cutting Machine

In our previous product series, we have several automatic cutting machine models that can measure length and cut round hollow pipes.

For round cables, we could only recommend CS series models to customers, and customers have to turn off the stripping function to meet single-cutting needs. Or customers must use the higher-priced C150 model.

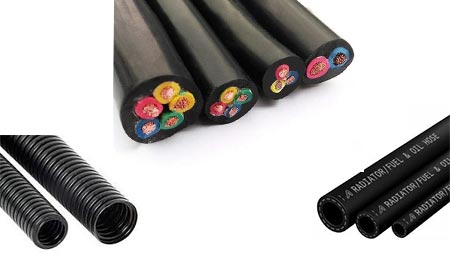

Now we have developed the C16 model. This multi-functional automatic cutting machine can process hollow pipes such as corrugated pipes and air pipes that cannot be flattened, and can also be used to cut round cables.

During testing, the C16 cutting machine can currently cut 3x6sqmm multi-core cables. Our R&D team continues to explore the upper limits of this machine’s capabilities

This machine's rich functions can meet customers' cutting needs for different materials.

Model	JCW-C16 Versatile Tube and Cable Cutting Machine
Function	Corrugated tube, plastic tubes, round cable, cutting speed, feeding speed, save program, calibrate cutting length
Tube cutting diameter	Max 30 mm
Cutting length ( L )	5 - 99999.99 mm
Cutting length increment	0.1 mm
Cutting length tolerance	L ± 1% mm [ material with no elasticity ]
Production rate	8000 pcs / h by 100 cutting length
Data library	100 programs
Display	7" color touchscreen, English / Chinese [ other languages on request ]
OEM	Yes
Power supply	AC 110 - 220V + 10 %, 50 / 60 Hz
Dimensions	L 560 x W 510 x H 480 mm
Weight	56 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
